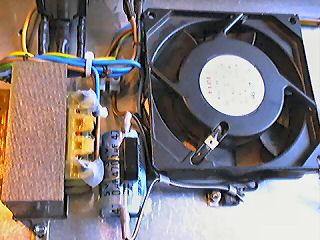

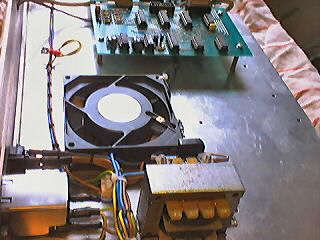

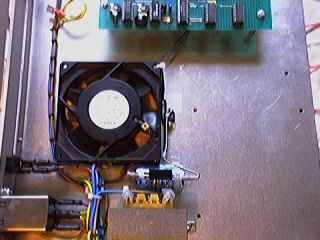

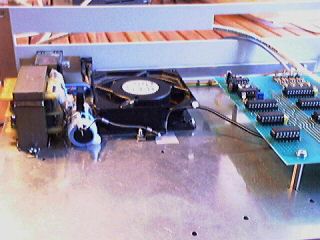

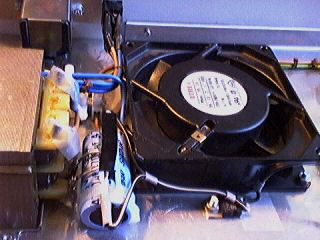

HamsterTracker™ PowersupplyHere are some pictures of the powersupply that is used by the system. It converts 220-230 AC to a stable 5 Volts DC, using the famous 78C05 chip!
The fan was already installed in the casing, so I thought it would be a nice feature for the HamsterTracker™ system to be able to be cooled by force.
Remember the system draws an aproximate 100 mA (!)
I've also made a video of the first powerup test!
Check it out!
|You can't take to many pictures of a project of this magnitude.|

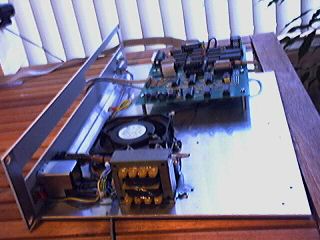

|This is the final construction of the HamsterTracker™ system hardware at this time of writing.|
